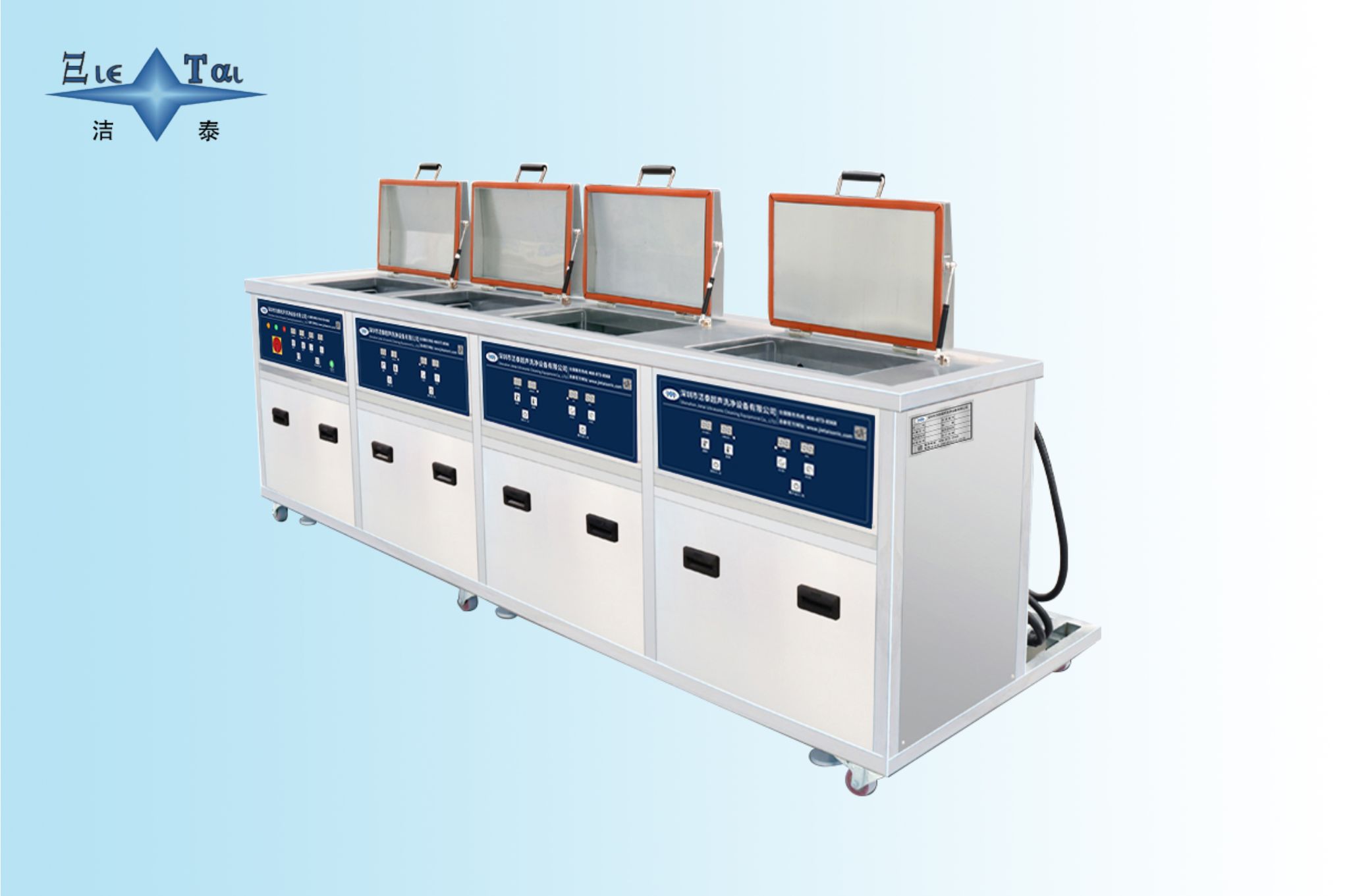

Cleaning & Filtration Tank: Equipped with an adjustable ultrasonic system (power/frequency optional as needed), it features temperature control from room temperature to 95℃ to enhance decontamination efficiency. A built-in filtration circulation system intercepts impurities in real time to maintain the cleanliness of the cleaning solution.

First Rinsing Tank: With temperature control in the same range (room temperature to 95℃), it initially strips residual cleaning agents from the workpiece surface using clean water or special rinsing fluid, connecting the transition link between "rough cleaning and precision cleaning".

Second Rinsing Tank: Adopting a refined rinsing process, it further purifies trace residues in areas such as workpiece gaps and blind holes, meeting the requirements of workpieces with high cleanliness (e.g., micron-level residue control).

Drying Tank: It supports precise temperature control in a wide range from room temperature to 150℃, with parameters adjustable according to workpiece materials to avoid high-temperature deformation or residual water marks. Combined with a hot air circulation system, it balances drying efficiency and finished product appearance protection.
